Non oriented fully processed steels are iron-silicon alloys with varying silicon contents and have similar magnetic properties in all directions in the plan of the sheet. They are principally used for motors, generators, alternators, ballasts, small transformers and a variety of other electromagnetic applications.

Category:

Description

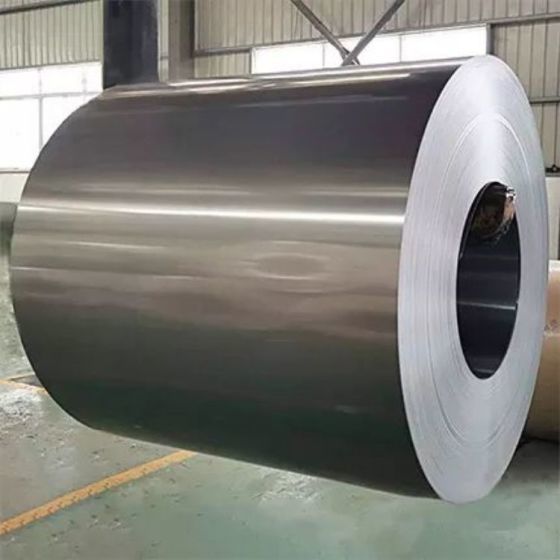

Cold rolled Non-Oriented silicon steel

Product introduction

Silicon steel, often called electrical steel, is steel with silicon added to it. The addition of silicon to steel increases its electrical resistance, improves the ability of magnetic fields to penetrate it, and reduces the steel’s hysteresis loss. Cold rolled Non-Oriented silicon steel

Material silicon steel
Standard DIN GB ISO JIS AISI ASTM
Grade 1300/800/600/470
Capacity about 2000 tons per month for the  coil product
Brand Gnee
Width 40mm-1200mm 1000/1100/1200(mm) or per customer’s request
Nominal Thickness 0.5mm
Max.Core Loss 50w1300 7.5W/kg,50W800 5.8W/kg,50W600 4.2W/kg.
Min.Induction 50w1300 1.74T,50W800 1.70T,50W600 1.67T.
Package fully seaworthy export packing
Application compressor motor, generator, electric machinery, etc.
